Discontinued - GFP 865DH-3 Professional Dual Heat Laminator
by GFP
Sold out
$17,495.00
SKU GFP-865DH-3R
865DH-3 65" Dual Heat Laminator & Stand With Rewind Motor & Rewind Tube
Install & Training Included
Machine Dust Cover for 865DH: $114.95
Extended Warranty: $2,050

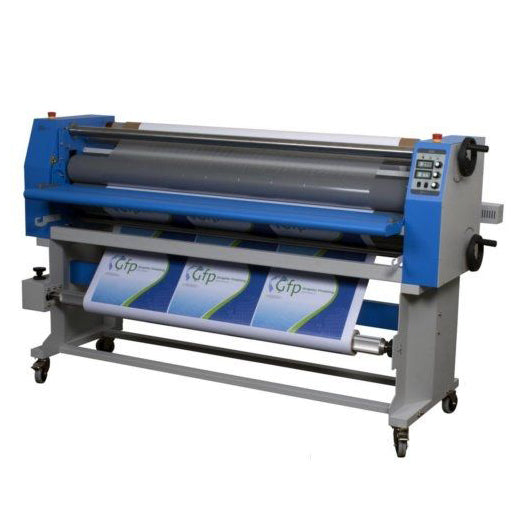

GFP 865DH-3
Professional Dual Heat Laminator
For finishing professionals who need versatility, quality, and economy in one machine, the Gfp 865DH-3 delivers. Turn out thermal encapsulation with low melt films (1.5-1Omil), PSA lamination, and mounting jobs quickly and easily.
ULTIMATE FLEXIBILITY Dual heat for thermal & cold apps PROFESSIONAL FEATURES Produce Professional results FAST ROLL CHANGES Front/Rear Swing-out shafts EASY LOADING 3" Quick-Grip Swing-out Shafts.
- Labor saving swing-out 3" Quick-Grip supply shafts
- Drop-in Quick-Grip rewind shafts
- Photoelectric eye for operator safety
- Independent top and bottom heaters
- Web clutch adjustment for output quality
- Optional motorized rear rewind
- Swing up feed table and 38" output height
| Heat/Cold | Dual Heat |
| Laminating/Width | 65" |
| Maximum/Speed | 13 |
| Speed/Control | Variable |
| Maximum/Temperature | 266 F |
| Heatin/Method | Quartz Tube |
| Mounting/Gap | 1" |
| Pressure/Gap Adjustment | Infinite |
| Pressure/ Gap Mechanism | Dual Hand Wheel |
| Roller Diameter | 5" |
| Main Rollers | Silicone |
| Supply Shaft | Swing Out with 3" Quick Grip |
| Tension Adjustment | Single Knob |
| Front Unwind | 2 |
| Power Supply | 240v 24A |
| Power Consumption | 5760W |
| Warranty Parts | 1 year |
| Warranty Labor | 1 year |
| Installation & Training | Included |
| Net Weight (LBS.) | 767 |
| Dimensions | 87" X 34" X 49" |
| Safety Appro val | cTUVus |
