The PTF-100 Powder-To-Film system (patent pending), also known as a Powder Shaker, uniformly coats DTF films with adhesive powder, improving DTF printing performance and operator safety. Instead of hand-coating DTF films in open plastic containers that expose shop personnel to adhesive dust and require operator time and attention to obtain reliable results, the PTF-100 system provides uniform coverage without dusting and spillage, reducing waste and freeing staff to optimize production time.
How too:
To operate, a filled cartridge is inserted at the top of the unit, and an empty cartridge at the bottom. An operator positions the wet DTF printed film on the application tray, print side up. Once the polycarbonate door is closed tightly, the operator adjusts the amount of powder released by the duration and number of times the release handle is activated.
The top cartridge releases adhesive powder which rains down on the film, ensuring complete and even coverage. After the film is coated to the satisfaction of the operator, the actuator is depressed to start a timed vibration cycle to release any excess powder from the film. When empty, the upper cartridge can be switched quickly and cleanly with the lower cartridge containing all excess powder, reducing exposure while eliminating waste and allowing continuous production until refilling is needed.D-100 Series:
- Adjustable, Tilting Heater Height
- Adjustable Belt Speed and Temperature Control
- Fully Expandable Heat Chamber and Conveyor
- Compact Size
Benefits:
- ECONOMICAL: Interchangeable cartridges minimize waste, offers quick and clean refills.
- VERSATILE: Fits up to 16 x 20 in. films
- CONSISTENT: Both the angle of powder deflection and timer are adjustable for repeatable results
-
STURDY,: Powder-coated stainless steel case and polycarbonate door for years of use
-
DUST-FREE: Sealed for mess-free operation
Whats Included:
- Equipped with rear mounted powered exhaust hood to vent glycol fumes
- Heat Presses

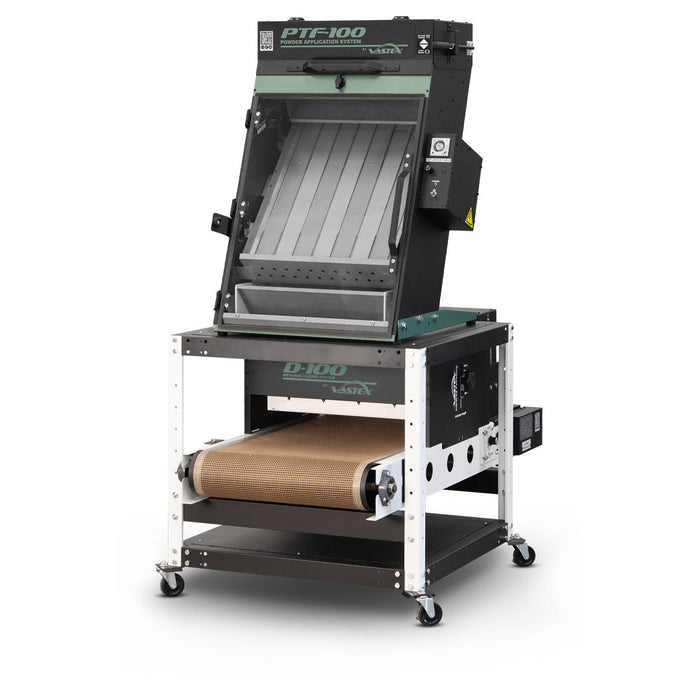

- Model S1-27 stand shown with PTF-100 System and D-100 Conveyor dryer
Specifications:
- Rail mounts fit Vastex D-100 Conveyor Dryer
Can also accommodate other compact tabletop equipment weighing up to 250 lb. (113 kg) - 26.8 in. (68 cm) H x 32.3 in. (82 cm) W x 32.3 in. (82 cm) D
- 55 lbs (25 kg)
- Shippable via UPS
Applicable Industries:
- Garments
- Tote Bags
- Caps
- And more!
- Fabrics:
- Cotton
- Polyester
- PU
- And more!
Compatible With:
- A4 sheets
- A3 sheets
- A3+ sheets
- 16 in x 20 in sheets
