Bring DTF transfers in house without building a production room around them. Send the art file to the DTF Station Vega S17 and it comes back as cut, stacked transfer sheets ready for your heat press, while the person running it goes back to the press.

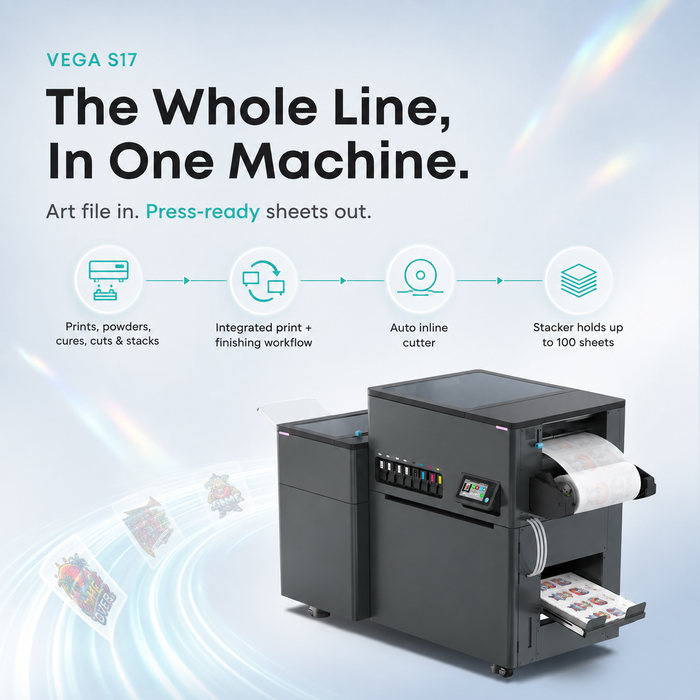

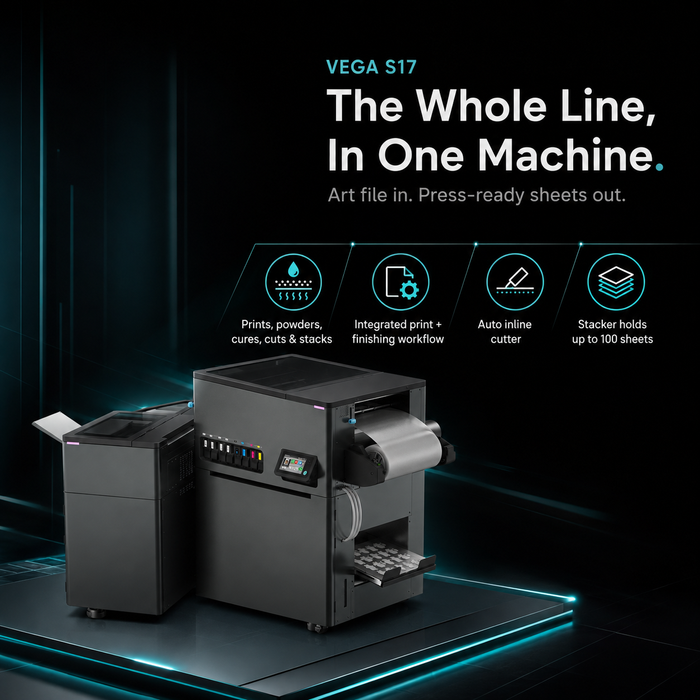

A DTF printer usually needs a row of other machines behind it: a shaker, an oven, a cutter and the extraction to vent it all. As an all-in-one DTF printer, the Vega S17 prints, powders, cures, cuts and stacks inside one enclosed machine. Nobody scoops powder, nobody sets an oven, and there is no ducting to run through the building.
It is built for shops that press what they print. Gang your jobs onto sheets that fit the press you already own, and stop paying for roll width and floor space you never use.
Key Features

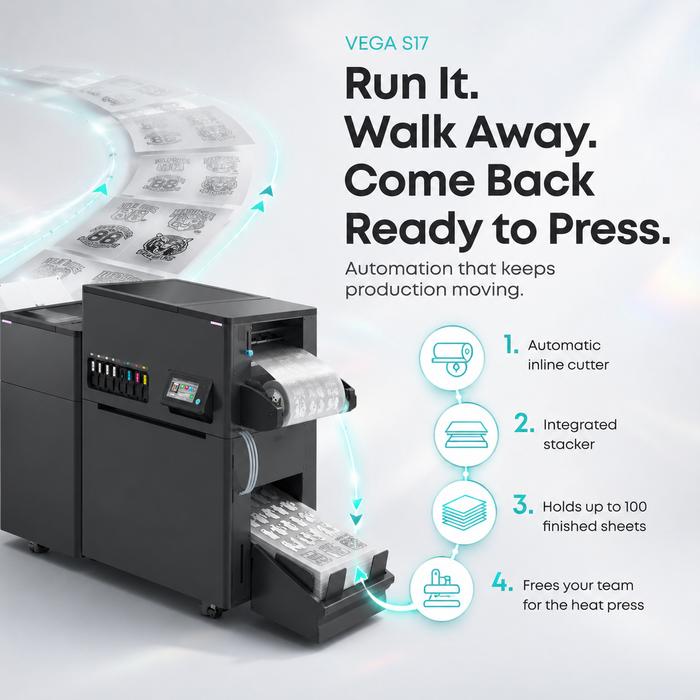

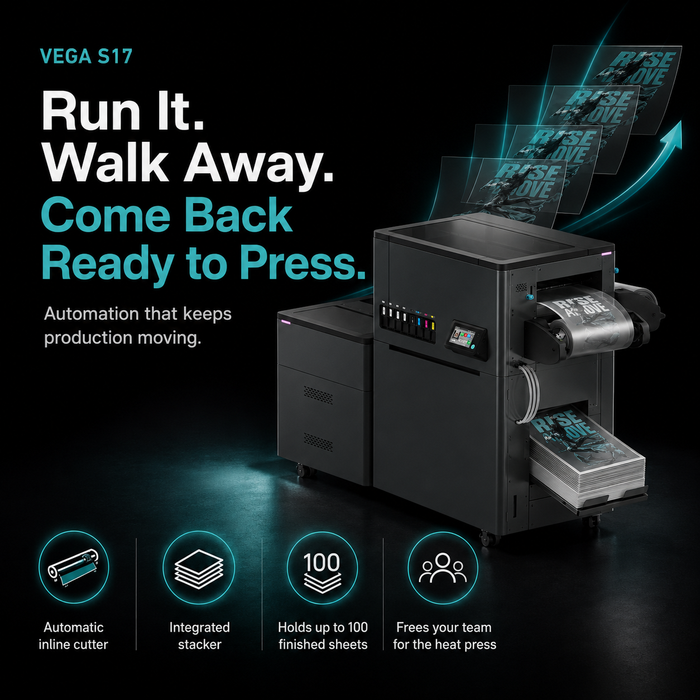

- Run the line without standing at it. The printing and finishing sections keep pace with each other, and finished sheets land in a stacker that holds up to 100, so one person can start a job and go run the press. Take the stacker off and the run goes to the end of the roll.

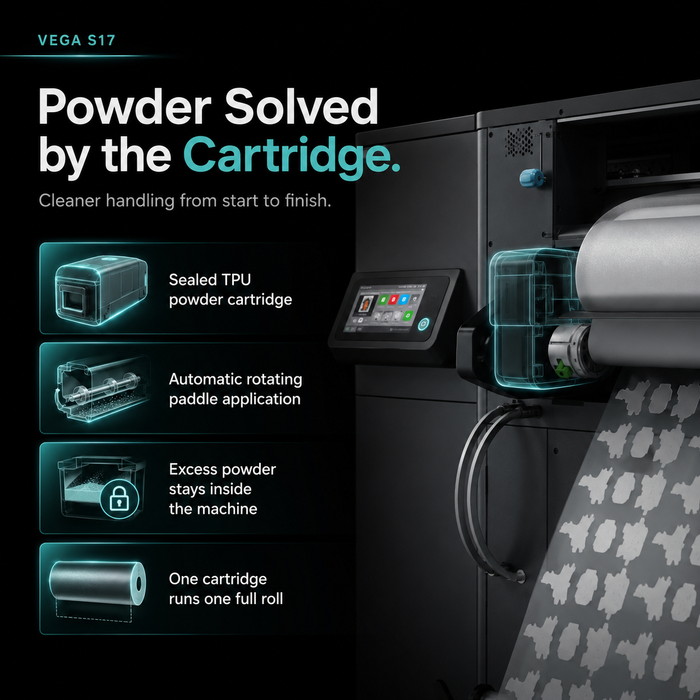

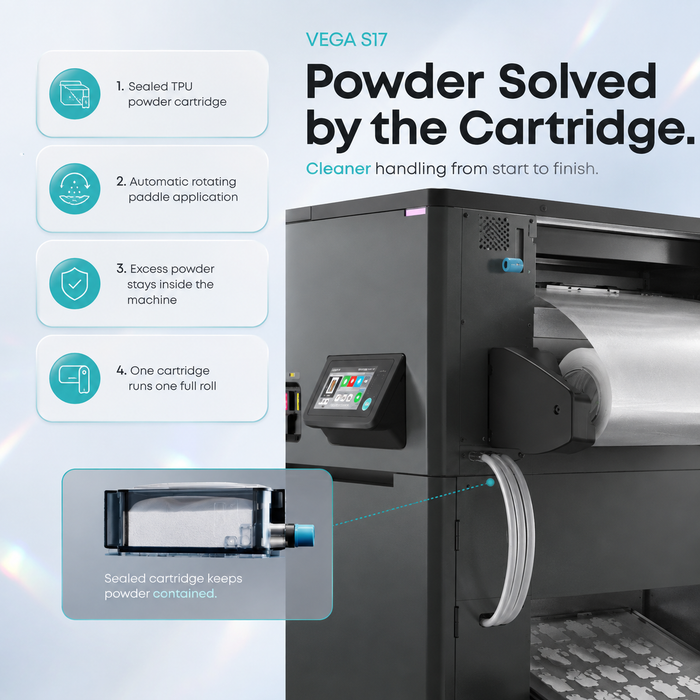

- Nobody on your team handles powder. TPU adhesive powder feeds from a sealed cartridge onto each sheet and the excess is caught inside the machine, so no one scoops or handles it by hand.
- The same cure no matter who is on shift. An enclosed heater bed with independently controlled zones runs a preset cure the operator never sets, so there is no oven setting to get wrong.
- Sheets come off cut to length. An inline cutter trims each sheet to the length you set for the job, so nobody cuts sheets off the roll by hand before they go to the press.
- Put it where you have room, not where the ducting goes. DTF Station builds it like office equipment: fully enclosed and quiet, with filtration that captures fumes and fine powder inside, and no external ventilation to install.

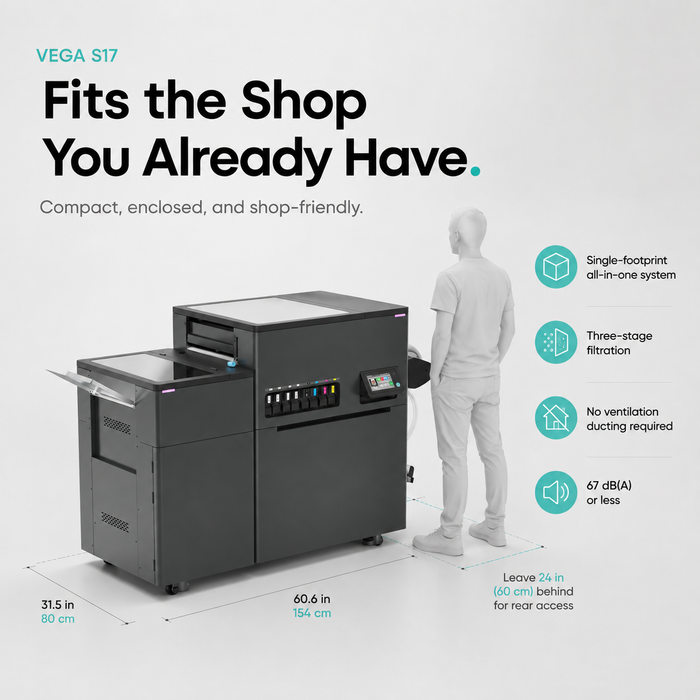

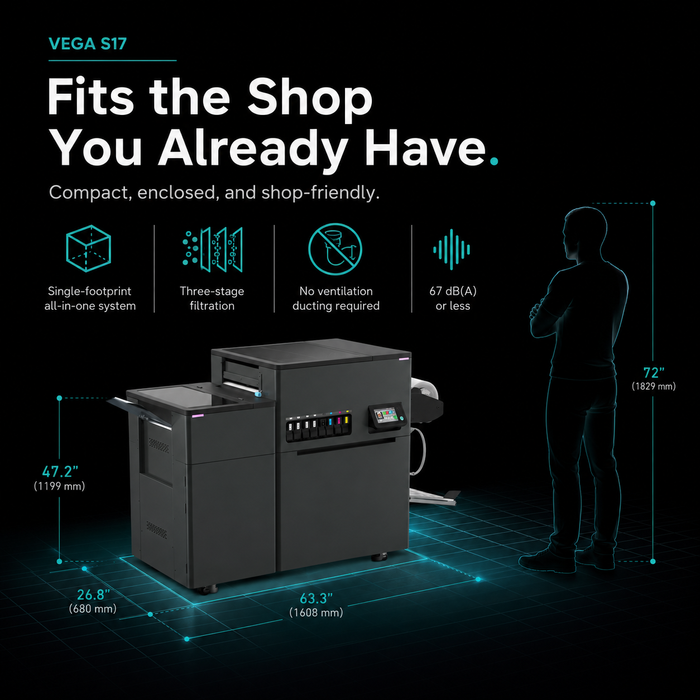

- Gets through the door and fits one footprint. The print section sits on top of the finishing section, the machine passes a standard doorway, and film loads and leaves on the same side, so a second unit can stand right beside the first.

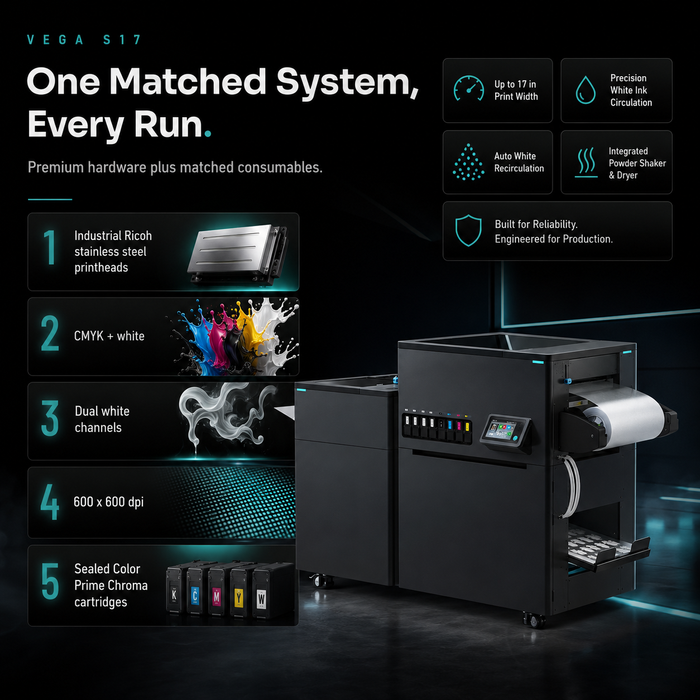

- A quiet week does not cost you a printhead. The industrial Ricoh heads run on sealed Color Prime Chroma ink cartridges, and while the machine sits idle it circulates the white ink, cleans the heads on schedule and seals them in a wet cap.
- One screen, and support that can see the machine. A single touchscreen runs both sections and tracks what maintenance is due. Error codes report to DTF Station support, and remote diagnostics and automatic software updates come over the machine's cloud connection.
Applications
- In-house DTF transfers: print the transfers for the jobs you press instead of ordering them in.
- Gang sheets sized to your press: fill each sheet with several designs, cut to a length that fits the platen you already use.
- Transfer production without ducting: make DTF transfers in a space where ducting for an oven and shaker is not an option.
- A second line beside the first: when you need more capacity, a second Vega stands right next to the first.
Compatibility & Requirements
- Power: Two standard 110V plugs, with a separate connection for each section. The two sections should not share one standard circuit. Confirm circuit requirements with DTF Station before installation.
- Your heat press: The Vega S17 produces cut, stacked transfer sheets ready for pressing.
- RIP Software: NeoStampa
- Consumables: Color Prime Chroma ink cartridges, DTF film on a roll, and sealed TPU adhesive powder cartridges.
Specifications
| Machine type | All-in-one DTF transfer production system: print, powder, cure, cut and stack |
|---|---|
| Print technology | Piezoelectric drop-on-demand inkjet |
| Printheads | Ricoh industrial, stainless steel face |
| Ink channels | 4 color, 2 white, 2 cleaning, on two separate carriages |
| Ink | Color Prime Chroma water-based pigment; sealed, pump-fed cartridges; white ink circulation |
| Resolution | 600 × 600 dpi |
| RIP | NeoStampa |
| Film width | 17 in (432 mm) roll |
| Maximum image width | 15.5 in (394 mm) |
| Maximum image length | 467 mm (18.4 in) |
| Sheet length | 10 to 19.7 in (25 to 50 cm), set per job |
| Film thickness | Up to 0.09 mm |
| Powder | TPU adhesive from a sealed cartridge |
| Curing | Enclosed conveyor heater bed, 4 independently controlled zones, 320°F (160°C) preset |
| Filtration | 3 stage: de-mist, medium, HEPA plus activated carbon |
| External ventilation | Not required |
| Cutter | Automatic inline shuttle cutter |
| Stacker | Up to 100 sheets; removable for full-roll runs |
| Print speed | Not yet published by DTF Station |
| Control | One tilt touchscreen for both sections |
| Connectivity | Ethernet 10/100, USB-A 2.0, Wi-Fi available |
| Noise | 67 dB(A) or less |
| Footprint, sections stacked | 67.1 × 31.4 in (170.4 × 79.8 cm) |
| Print section (W × D × H) | 50.9 × 31.4 × 21.2 in, 243 lb |
| Finishing section (W × D × H) | 67.1 × 31.4 × 41.9 in, 384 lb |
| Total weight | 626 lb (284 kg) |
| Power | Two standard 110V plugs, one for each section |
| Power draw | Print section 400W max; finishing section 1,450W max |
| Operating temperature | 59 to 90°F; 77°F or below recommended |
| Operating humidity | 45 to 80% RH; 45 to 70% RH recommended |
| Setup time | About one hour, crate to first print |
| Made in | Engineered and built in Korea |
What's Included
Vega S17 DTF Printer + Software
- Vega S17 DTF Printer
- Print section
- Finishing section
- RIP software and driver

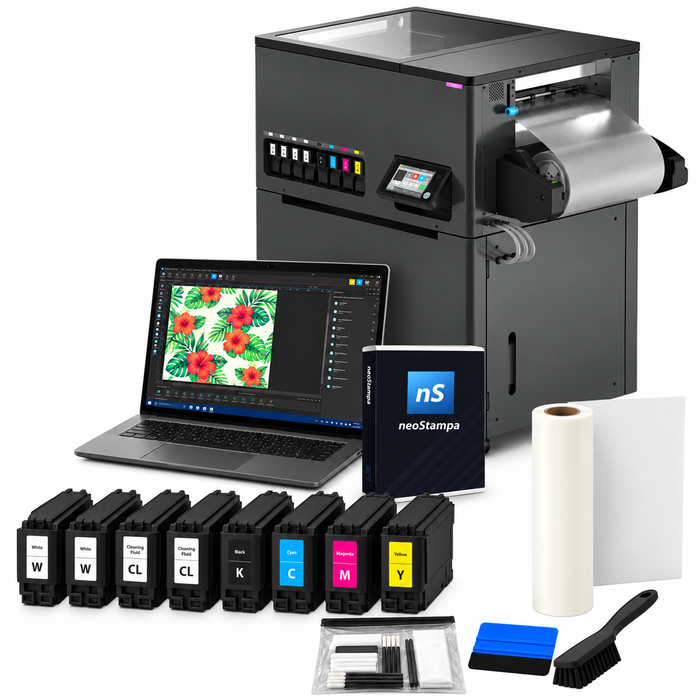

Printer + Supplies + Software
- Vega S17 DTF Printer
- Print section
- Finishing section
- Color Prime Chroma ink cartridge set, CMYK plus white
- Cleaning cartridges
- Starter adhesive powder cartridge
- 17" Color Prime transfer film roll
- RIP software and driver
- Maintenance starter kit
- Squeegee and brush for the finishing section

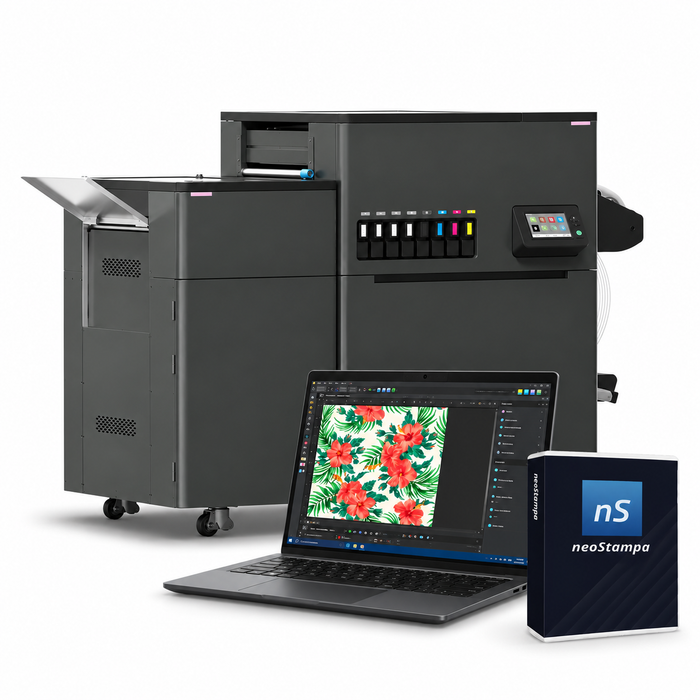

Printer + Glue Station + Software
- Vega S17 DTF Printer
- Print section
- Finishing section
- Glue Station
- RIP software and driver
Printer + Glue Station + Supplies + Software
- Vega S17 DTF Printer
- Print section
- Finishing section
- Glue Station
- Color Prime Chroma ink cartridge set, CMYK plus white
- Cleaning cartridges
- Starter adhesive powder cartridge
- 17" Color Prime transfer film roll
- RIP software and driver
- Maintenance starter kit
- Squeegee and brush for the finishing section
Care & Maintenance
- Leave it powered on: DTF Station designs the Vega S17 to stay powered, because that is when it circulates the white ink, cleans the heads on schedule and wet caps them after six hours idle.
- Shutting down for two weeks or more: flush the ink and charge the system with storage fluid first.
