Stop Leaving Money on the Table. Start Printing Bigger, Faster, and More Reliably.

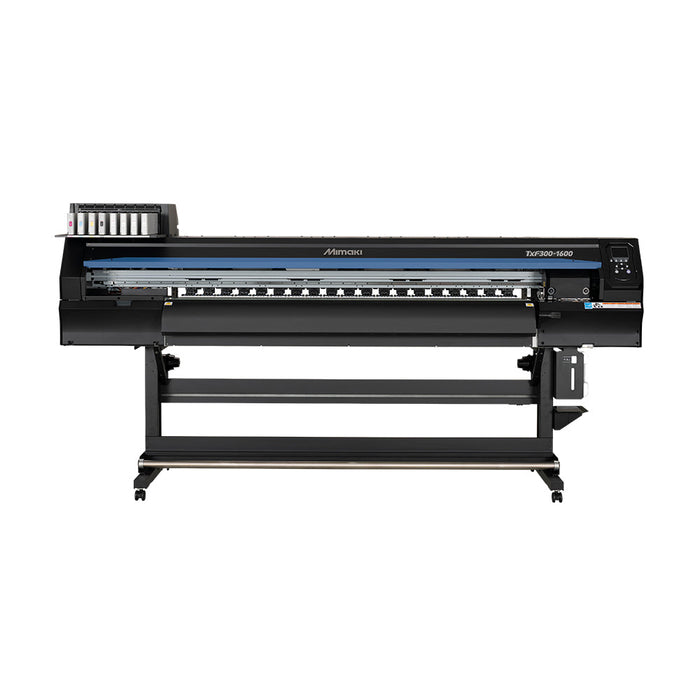

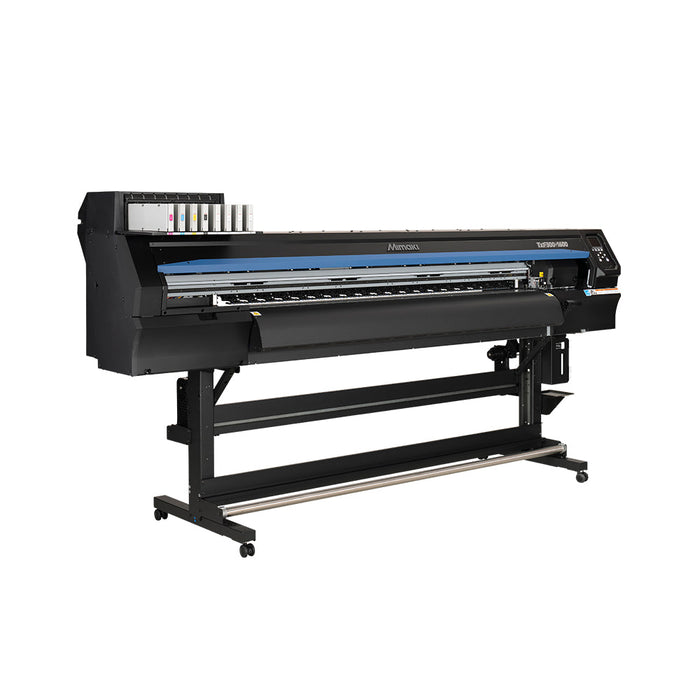

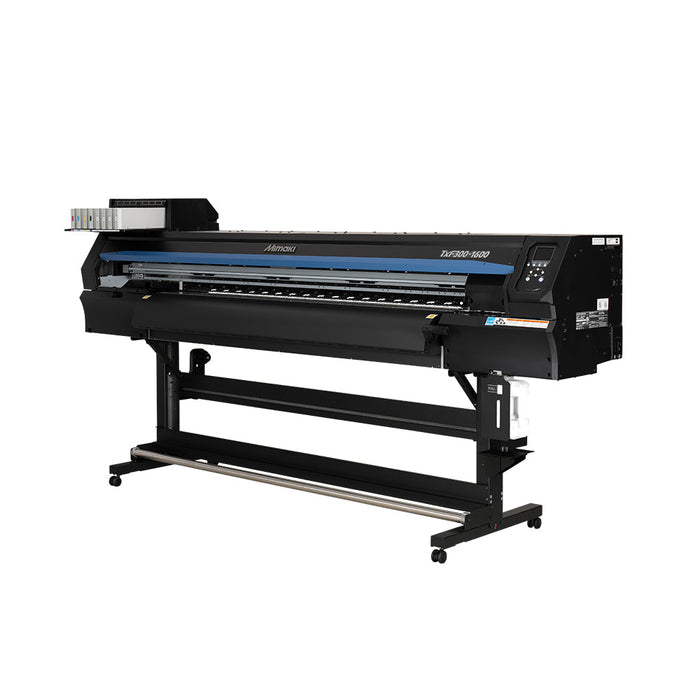

The Mimaki TxF300-1600 is a 63-inch wide format DTF printer engineered for print shops that refuse to turn down large orders. If you're tired of production bottlenecks, white ink headaches, and watching competitors land the jobs you can't handle, this industrial DTF printer changes everything.
Built on Mimaki's 50 years of inkjet innovation, the TxF300-1600 delivers the productivity you need with the reliability you demand - so you can say "yes" to more customers and spend less time maintaining equipment.
Features:
- Dual On-Demand Piezo Printheads: Precision ink placement for sharp details, smooth gradients, and consistent edge definition on every transfer.

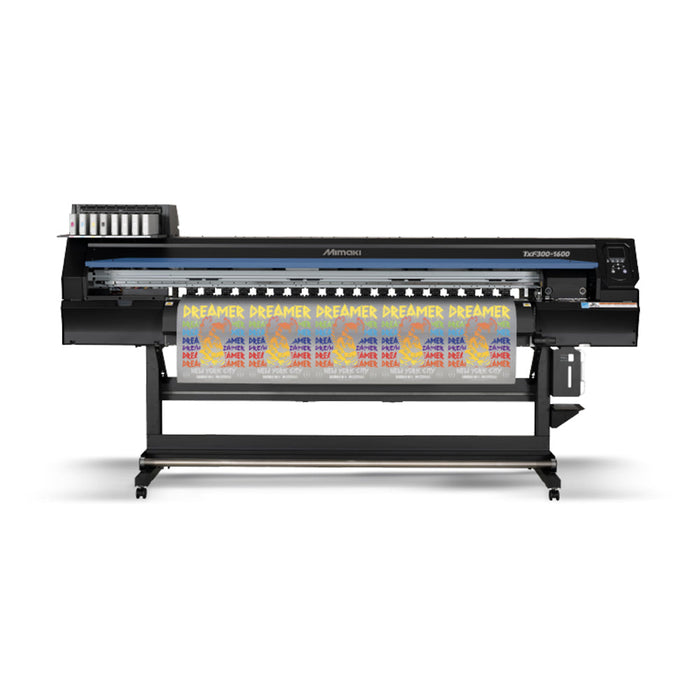

- 63" Wide Format Printing: Print multiple designs side-by-side or tackle oversized graphics that smaller DTF printers can't touch. More width = more revenue per hour.
- 84 Large T-Shirts Per Hour: Triple the output of entry-level models without sacrificing quality. Finally handle those bulk orders that used to take days.
- Up to 1440 x 1440 dpi Resolution: High-quality prints that make your customers look like heroes to their clients.
- White Ink Circulation (MCTv2): Automatically prevents sedimentation and clogging for reliable, consistent white underbase
- Nozzle Check Unit (NCU): Automatic defect detection and cleaning that catches problems before they ruin prints. Less waste, more profit.
-
Nozzle Recovery System (NRS): Keep producing even when nozzle issues occur. No waiting for technicians means no lost production days.
- ECO PASSPORT Certified Inks: Skin-safe, environmentally responsible PHT50 pigment inks
Benefits:
-
30% Productivity Increase Over Pro Model: The 63" width produces 84 shirts hourly compared to the TxF300-75 model's 62, letting you accept more jobs and grow revenue without adding a second machine.
- Win Bigger Corporate Contracts: Handle large-volume orders with consistent quality and faster turnaround times that corporate clients demand
- Reduce Waste, Protect Your Profit Margins: Consistent quality and reliable white ink performance means fewer rejected prints, less wasted film, and more money in your pocket
- Eliminate the Pretreatment Step Completely: DTF method removes the need for fabric pretreatment - no more spraying, waiting, or hoping for even coverage
- Reliable White Ink Performance: Circulation technology prevents sedimentation issues common in DTF printing
- Consistent Results from First Print to Last: Intelligent heater system and circulation technology deliver the same vibrant colors and white coverage on print #1 and print #1,000
Specifications:
- Printhead: Dual On-demand piezo heads
- Print resolution: 720dpi, 1,440dpi
- Maximum Print Width: 63.4" (1610mm)
-
Maximum Media Width: 63.8" (1620mm)
-
Maximum Media Thickness: Up to 0.04″ (1 mm)
-
Maximum Media Weight: Up to 99.2 pounds (45 kg)
- Ink Type: Heat transfer pigment ink PHT50 (C,M,Y,K,W)
- Interface: Ethernet 1000 BASE-T / USB2.0
- Power Supply: Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
- Power Consumption: AC100-120V, 1300W or less, AC200-240V, 1750W or less x1
-
Operational Environment:
- Temperature: 68-86 F (20° – 30°C)
- Dimensions (W × D × H): 148.93” x 106.3” x 54.80” (3,783mm × 2,700mm × 1,392mm)
- Weight: 277.8 lbs (126kg)
- Certifications: VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC
Applicable Industries
- Garments
- Tote Bags
- Caps
- And more!
- Fabrics:
- Cotton
- Polyester
- PU
- And more!
