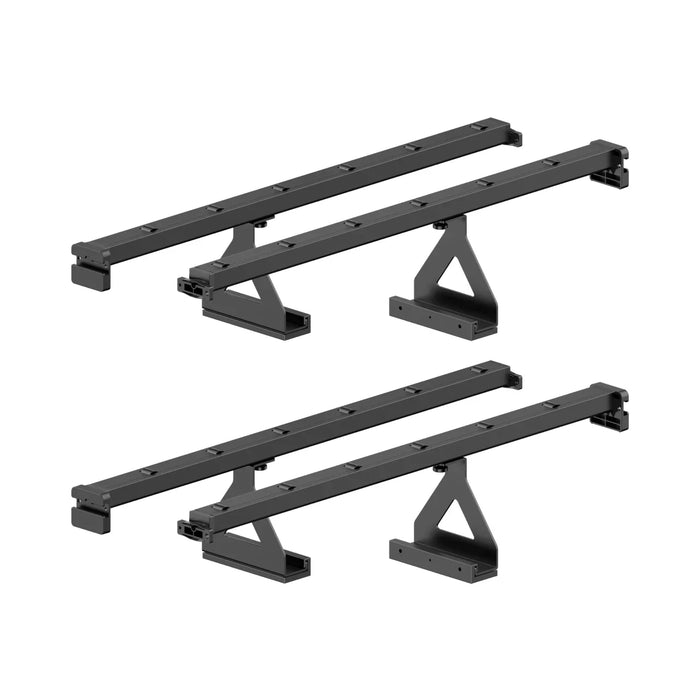

xTool P2 Conveyor Rail
Batch-Production Laser Conveyor Rail
The xTool P2 Conveyor Rail expands your xTool P2 into a continuous feed powerhouse — allowing engraving and cutting on materials up to 118" long for efficient batch production with consistent alignment and minimal manual handling
Features
- Maximum processing area: 118" × 19.6" for long-format projects
- Automatic material conveying: Conveyor rail feeds materials automatically, reducing manual loading
- Supports wide material widths: Works with materials 2.5"–24.5" wide
- Handles substantial thickness: Accepts materials up to 0.55" thick (≈14 mm)
- Adjustable rail extension: Modular rails enable processing lengths up to 118" (with add-on kits)
Benefits
- Higher throughput: Continuous feed supports large jobs and batch runs
- Consistent precision: Auto alignment minimizes mis-feeds and accuracy deviation
- Versatile material support: Works with woods, acrylics, soft materials and boards
- Saves labor: No need to manually reposition material between cuts
- Scalable capacity: Rail extensions adapt to varied project sizes
What’s Included
- Conveyor rail kit (base 2-pair rails)
Specifications
- Product dimensions: 27.1" × 7.8" × 5.3"
- Packaging size: 30.2" × 10.1" × 9.1"
- Product weight: approx. 14.3 lb (≈8.045 kg)
- Max feed speed: 160 mm/s (≈ 6.3 in/s)
- Work area: up to 118" × 19.6" (3000 mm × 500 mm)
- Material width supported: 2.5"–24.5" (65–624 mm)
- Material maximum thickness: 0.55" (≈14 mm)
Compatible With
- xTool P2 laser cutter / engraver
- xTool P2S laser cutter / engraver
