Epson SureColor F-Series
Direct-to-Garment Printers

High-Performance, Reliable Direct-to-Garment Printing.

Designed exclusively for direct-to-garment printing, the SureColor F2100 offers an entirely purpose-built system for high-quality prints at production speeds. Developed using the latest advancements in performance imaging, including our Epson® PrecisionCore® TFP® printhead and Epson UltraChrome® DG garment ink technology, the SureColor F2100 achieves up to twice the speeds of our previous generation of DTG printers1. Additional improvements — like a quick-load platen and robust Epson Garment Creator Software — take productivity even further, while the all-new integrated self-cleaning system means less downtime.

Product Features

  • PrecisionCore® TFP® Printhead Commercial-grade printhead technology designed specifically for DTG imaging
  • Simple Front Control Panel Full Color LCD with Image Preview
  • Robust Garment Platen Medium size 14″ x 16″ platen included
    Extra Small 7″ x 8″
    Small 10″ x 12″
    Medium Grooved 14″ x 16″
    Large 16″ x 20″
    Sleeve 4″ x 4″
  • USB Memory Port Perfect for PC-Free Printing Workflows
  • Ethernet & USB
  • Cartridge Locations 600 mL size ink cartridges x 6
    700 mL size cleaning cartridge x 1

The Future of Production Garment Printing.

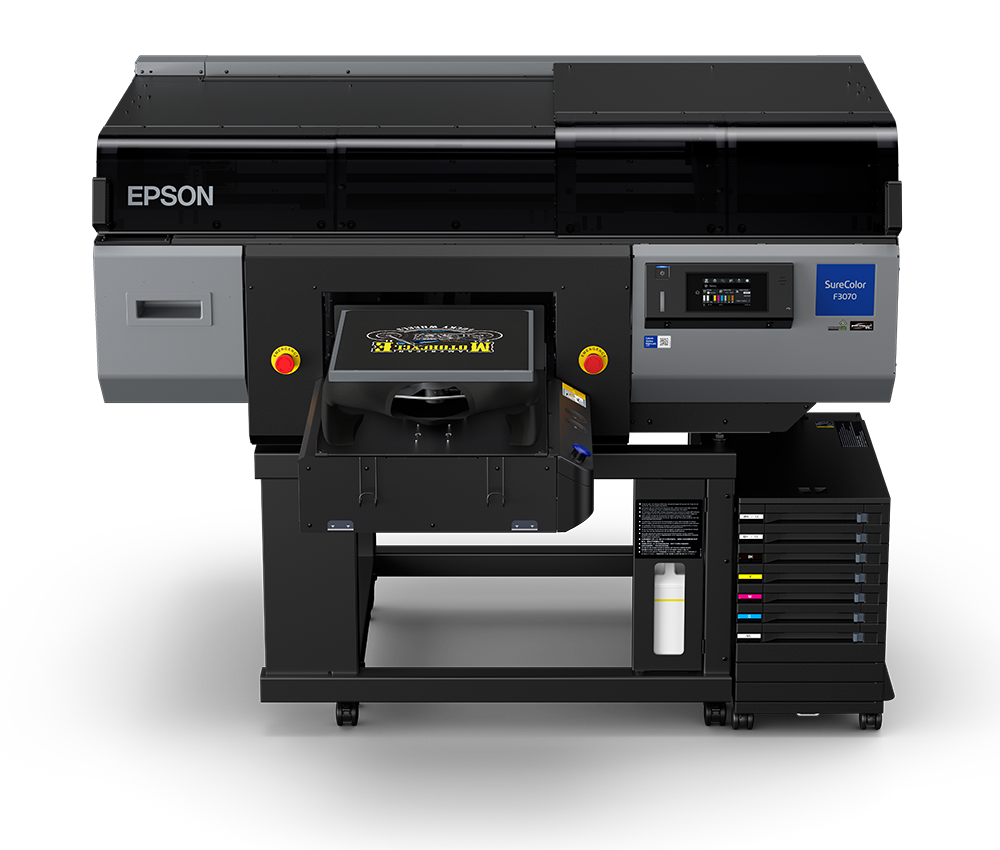

Bring a new level of productivity and efficiency to your printing business with the all-new SureColor F3070 industrial direct-to-garment printer. The first of its kind to meet the demanding needs of high-production print shops, the F3070 was built from the ground up to deliver professional-quality, one-pass prints at industrial-level speeds. Featuring automatic garment thickness adjustment, easy user maintenance features and a new dual 2.6″ PrecisionCore® printhead, this innovative direct-to-garment printer maximizes productivity and reduces downtime for fast, cost-effective print production. Coupled with the first bulk ink system integrated into an Epson® direct-to-garment printer, the F3070 can produce a full-size t-shirt in moments, allowing print shops to print hundreds of shirts per day, all at a remarkably low cost of ownership.

Product Features

  • Printing Technology Dual advanced PrecisionCore microTFP 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology
  • Ink Type UltraChrome DG; 5-color
  • Production Edition Ink Configuration C, M, Y, K, W
  • Nozzle Configuration 8,000 White ink print nozzles; 6,400 color ink print nozzles
  • Droplet Technology Variable Droplet Technology
  • Maximum Resolution 1200 x 1200 dpi
  • Printer Language/Drivers Epson ESC/P® raster
  • Ink Supply Pack Fill Volume 1,500 ml each pack
  • Ink Pack Shelf Life 2 years from printed production date
    Printer is designed for use with Epson ink packs only, not third-party ink systems*.
  • Maximum Pallet Size Large: 16″ x 20″
  • Included Pallet Size Medium: 14″ x 16″
  • Maximum Garment Thickness Up to 29.5 mm
  • Printer Interfaces Hi-Speed USB 3.0 (1 port), 1000Base-T Ethernet (1 port)
  • Operating Systems Supported Windows® 10 and 8.1, macOS 10.12 (Sierra) or later
  • Garment Creator Software Minimum PC Requirements Multicore processor, 2GB RAM, 32GB Free Storage
  • Recommended PC Specifications Intel Core i7 8th generation processor, 16GB RAM, 32GB free SSD storage
  • Weight and Dimensions (W x D x H) 68″ x 72″ x 53″ (1,712 mm x 1,809 mm x 1,336 mm)
  • Weight 730 lb (330 kg)
  • Acoustic Noise Level Less than 59 dB(A) according to ISO 7779
  • Temperature Operating 59˚ to 95˚F (15˚ to 35˚C), Operating (recommended): 59˚ to 77˚F (15˚ to 25˚C)
  • Relative Humidity Operating 20 – 80% (no condensation), Operating (recommended): 40 – 60% (no condensation)
  • Electrical Requirements Printer Requires two outlets
  • Voltage AC 100 – 120 V; 200 – 240 V
  • Frequency 50/60 Hz
  • Current 8.2 A at 100 – 120 V, 4.1 A at 200 – 240 V
  • Power Consumption Printing Approx. 168 W or less, Sleep Mode: Approx 20 W, Power Off: Approx 1.0 W
