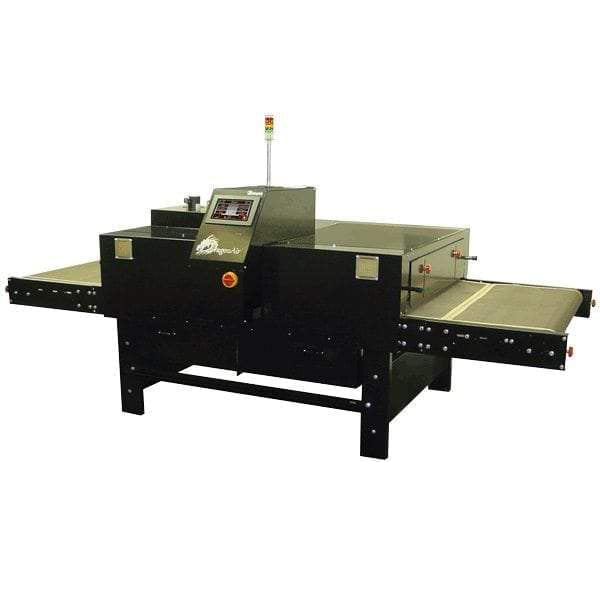

Brown DragonAir Fire Series Convection DTG Dryer

Brown DragonAir Brochure

DragonAir Fire Convection DTG Dryers feature TRX software and DragonAir Core Technology.

Digital Printing is speciality market requiring a new way of thinking. Rapid production of low volume, high-quality graphics is necessary to produce high profits.

The DragonAir line of curing systems is designed for water-based, plastisol, polyester, digital and speciality printing for fast-paced, high production shops.

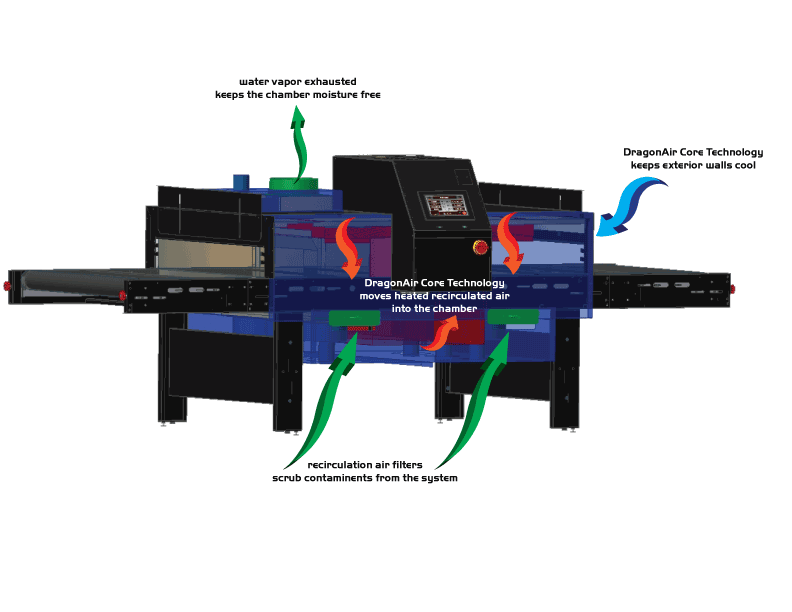

DragoinAir Core Technology ensures consistent and complete curing on all garments. These features provide air heat for more precise temperature control. The air is filtered and recirculated.

The Fire is designed for the high volume of discharge, direct-to-garment (DTG) and water-based printing.

• TRX software

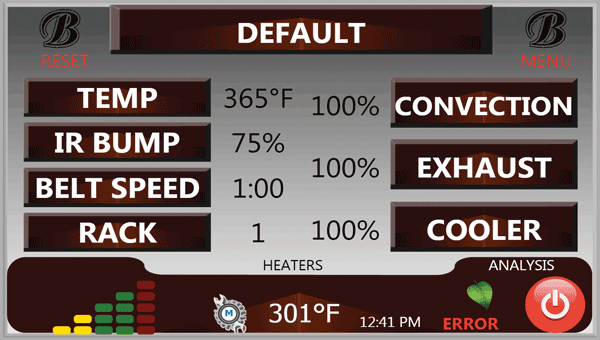

• 7" Touchscreen controls
• DragonAir Core technology
• Triple wall insulated side walls
• Adjustable height heater rack
• Independent baffle height adjustment
• Crowned rollers for perfect belt tracking
• Variable speed exhaust

DAF-2475

• 24" wide belt
• 55" DragonAir Core
• 24" infeed
• 17" exit
• 8" IR bump
• 90" belt length
• 240V,41A, 1Ø

DAF-3611

• 36" wide belt
• 73" DragonAir Core
• 30" infeed
• 30" exit
• 8" IR bump length
• 140" belt length
• 240V, 88A, 1Ø or 240V, 50A, 3Ø
