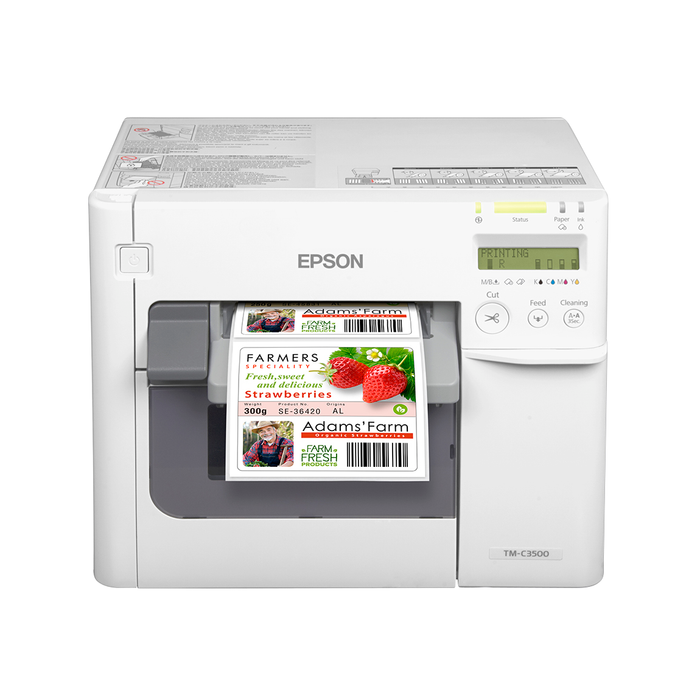

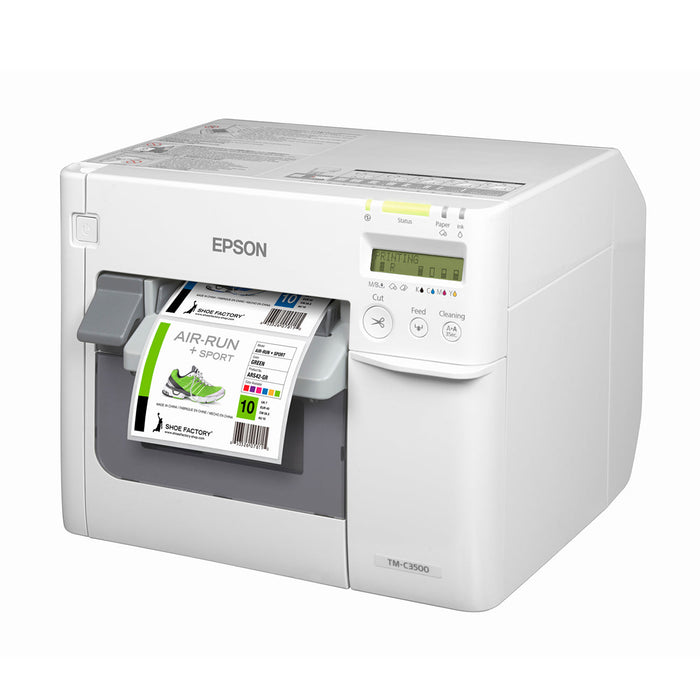

Epson ColorWorks TM-C3500 4 Inch Color Label Printer

Discontinued - Epson ColorWorks TM-C3500 4 Inch Color Label Printer - DHCP

by Epson
Sold out
$1,999.00
$1,699.00
SKU EPSON-C31CD54011

With Epson's ColorWorks C3500 inkjet label printer, you can dramatically reduce label costs, increase operational efficiencies and print high-quality, durable labels on demand in four colors (CMYK) at speeds of up to 4 inches/second.

What's In The Box?

  • ColorWorks C3500
  • AC power adapter with line cord
  • Full capacity Ink cartridges
  • Sample label roll
  • Media output tray
  • Instruction sheet
  • CD with utilities and manuals

Features:

  • Ideal for high-mix, low-volume applications
  • Compact, robust design for commercial use
  • High print speed of up to 4 inches/second
  • High-quality four-color inkjet printing
  • Individual ink cartridges for efficient use of ink
  • Supports all major label applications
  • Easily adjusts to handle 1.2" to 4.4" widths
  • Rear-feed capability for fanfold and large rolls
  • Meets BS5609 certification for GHS labels
  • USB and Ethernet interfaces

Specifications:

Printing Technology: MicroPiezo® inkjet technology, Automatic NozzleChecking

Print Resolution:

  • Speed Mode: 360 dpi x 360 dpi
  • Quality Mode: 720 dpi x 360 dpi

Print Width: 4.1" (104mm) max.

Print Speed:

  • High-speed mode: 360 dpi x 180 dpi
    • 2.7"/sec. (4.1" print width)
    • 3.3"/sec. (2.8" print width)
    • 3.7"/sec. (2.2" print width)
  • Fine mode: 360 dpi x 360 dpi
    • 1.4"/sec. (4.1" print width)
    • 1.7"/sec. (2.8" print width)
    • 1.9"/sec. (2.2" print width)

Ink:

Ink Type: Pigmented ink, individual CMYK cartridges

Ink Configuration:

  • GJIC22P(C)   Cyan    C33S020581
  • GJIC22P(K)   Black    C33S020577
  • GJIC22P(M)   Magenta C33S020582
  • GJIC22P(Y)   Yellow   C33S020583

General:

Operating Systems:

  • Windows® XP 32-bit (SP3)/64-bit (SP2)
  • Windows Vista® 32-bit/64-bit (SP2)
  • Windows 7 32-bit/64-bit (SP1)
  • Windows 8 32-bit/64-bit

Temperature:

  • Operating: 10-35 degrees C
  • Storage: -20-40 degrees C

Humidity:

  • Operating: 20-80% RH humidity
  • Storage: 5-85% RH humidity

Sound Level: Approx. 58 dBA

Dimensions:

  • Printer: 12.2" x 11.1" x 10.3" (W x D x H)
  • Shipping: 17.5" x 15.5" x 16.8" (W x D x H)

Weight:

  • Printer (without ink): 26 lbs (12.2 kg)
  • Shipping: 41 lbs (12.2 kg)

Safety Approvals:

  • EMI: FCC / ICES-003 Class B
  • Safety standards: UL60950-1/CSA C22.2 No.60950-1
  • Warranty: One year depot repair

Fonts:

Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1DataBar Omnidirectional, GS1 DataBar Truncated, GS1DataBar Limited, GS1 DataBar Expanded, PDF417, QRCode, Maxi Code, GS1 DataBar Stacked, GS1 DataBarStacked Omnidirectional, GS1 DataBar ExpandedStacked, DataMatrix, Aztec Code

Media Handling:

Width:

  • Roll feed: 1.2" – 4.25" (30 – 108mm)
  • Fan fold: 2.0" – 4.25" (50 – 108mm)

Type: Roll-fed or fanfold; die cut or continuous; single layeror adhesive labels on liner; plain paper, fine paper, PETfilm, synthetic

Thickness: 4.7 – 7.5mils (0.12 – 0.19mm)

Roll Diameter:

  • O.D. 4.0" (102mm) max.
  • Core diameter 1.75" (44mm) to 2.25" (57mm)

Roll-fed Width: 1.2" – 4.25" (30 – 108mm)

Sensors: Gap, black mark, media cut

Black Mark Size: Min. 0.20 x 0.16" (5.0 x 4.0mm) (W x H)

Die-cut Label Gap: Min. 0.12" (3.0mm)

Connectivity:

Standard Connectivity: USB 2.0 High-speed, Ethernet 10/100 BASE-T

Display Terminal:

Ethernet: Ethernet 10/100 BASE-T

Power:

Rated Voltage: AC 100-240 VAC

Rated Frequency: 50-60 Hz

Power Consumption:

  • Printing: 30 W (average printing)
  • Standby: 2.5 W
  • Power Off state: 0.3 W

Power Source: AC power adapter with line cord
