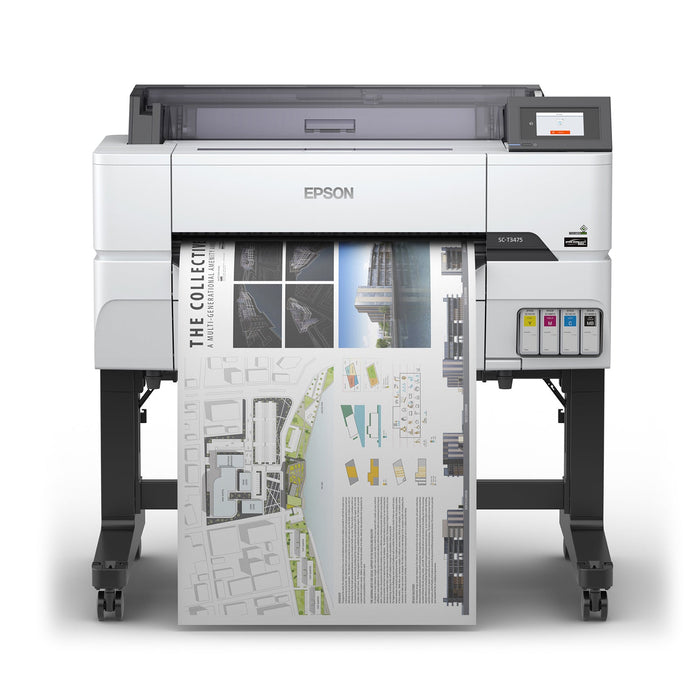

Epson SureColor T3475 Printer

by Epson
Save $500.00
Original price $2,295.00
Current price $1,795.00
SKU EPSON-SCT3475SR

Productive and easy-to-use 24" workgroup inkjet printer.

Rethink workgroup productivity with the 24" SureColor T3475 wide-format wireless printer, offering powerful, precise printing within a compact, robust design. Ideal for high-production printing of blueprints, line drawings and posters up to 24", it delivers accurate, A1/D-size prints in as fast as 25 seconds1. Featuring a 4.3" color touchscreen, this easy-to-use printer also offers advanced network security and encryption designed to safeguard sensitive information. Its high-capacity UltraChrome XD2 pigment inks ensure durable, vibrant prints. Plus, Epson’s breakthrough PrecisionCore MicroTFP printhead achieves outstanding clarity and commercial-grade reliability.

Model: SCT3475SR

Convenient PC-free printing — print blueprints, drawings, charts and posters directly from a USB thumb drive
Compact, robust design — maximize office space and productivity
Integrated security — protect important information with advanced network security and encryption features

Designed for use exclusively with Epson cartridges*.
Eco Features

RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay Transport Partner

Better Products for a Better Future
For more information on Epson's environmental programs, go to www.epson.com/environment

Print:

Printing Technology:PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

Minimum Ink Droplet Size:4 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:2400 x 1200 dpi
Print Speed:A1/D-sized print: 25 seconds
Nozzle Configuration:Color and monochrome heads; 800 nozzles x 4 channels

Ink:

Ink Type:UltraChrome XD2 pigment ink; 4-color (C, M, Y, K)

Replacement Ink:

Ink Cartridge (110 ml)

Cyan T41W220
Magenta T41W320
Yellow T41W420
Black T41W520

Ink Cartridge (350 ml)

Cyan T41P220
Magenta T41P320
Yellow T41P420
Black T41P520

Ink Cartridge (700 ml)

Cyan T41N220
Magenta T41N320
Yellow T41N420
Black T41N520

General:

Operating Systems:

macOS 10.13.x, Mac OS X 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x
Windows 10, 8.1, 7 (32-bit, 64-bit), Windows Vista and Windows XP

Temperature:
Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)

Sound Level:
Operating: Approx 50 dB(A)
Sleep: Approx 32 dB(A)

Dimensions:
With Stand: 43" x 30" x 42" (1080 x 750 x 1060 mm)
Weight:With Stand: 141 lb (64 kg)

Eco Features:
ENERGY STAR qualified
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay Transport Partner
Safety Approvals:UL (MET), FCC (Class A), CSA, CE, EMCCountry of Origin:IndonesiaWarranty:Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday

Printable Area and Accuracy:

Maximum Paper Width:24"

Minimum Paper Width:Roll: 10"/Sheet: 8.27"
Maximum Printable Length:Limited by application, OS and driver/RIP used

Sheet Media Handling:

Single Sheet, Top-loading:Up to 24" wide

Left/Right Margins:0 to 3 mm each (0.24" total)

Roll Media Handling:

Single Roll-to-Roll / Top-loading Roll:Up to 24" wide

Media Core:2” or 3" User-adjustable roll media adapters
Maximum Roll Diameter:Up to 6.6"
Media Thickness:Up to 11.8 mil
Roll Cutting:High-speed internal rotary cutter; auto or manual
Roll Paper Remaining:The amount of remaining paper can be controlled from the control panel
BorderFree Print Widths:10.0", 11.8", 13.0", 16.0", 17.0", 19.7", 20.3", 23.0", 24.0"

Printer Details:

Display:4.3" Touchscreen

Printer Language:Epson ESC/P Raster, HP-GL/2, HP RTL
Interfaces:SuperSpeed USB (compatible with USB 3.0 specification), USB Direct, Wireless LAN IEEE (802.11 b/g/n), Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct

Power:

Rated Voltage:AC 110–240 V

Rated Frequency:50–60 Hz
Power Consumption:
Printing: Approx. 34 W
Ready: Approx. 13 W
Sleep: approx. 1.3 W
Power Off (Stand By): 0.25 W
Rated Current:2.8 A

Epson Intelligent Ink Cartridges:

In-box Cartridge Fill Volume:C, M, Y, K: 110 mL

Retail Cartridge Fill Volume:C, M, Y, K: 110, 350, or 700 mL
Ink Cartridge Shelf Life:2 years from printed production date or 6 months after opened Printer is designed for use with Epson cartridges only, not third-party cartridges or ink. *

What's In The Box:

SureColor T3475 Printer
Full Set of Initial Ink Cartridges (CMYK 110 mL)
Start Here Poster
User Guide
AC Power Cable

Note: Media is not included with the printer
