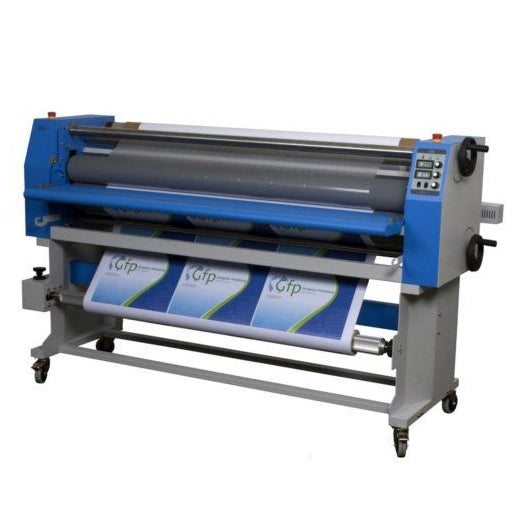

GFP 865DH-4R Professional Dual Heat Laminator

by GFP
$18,995.00
SKU GFP-865DH-4RS

For finishing professionals who need versatility, quality, and economy in one machine, the Gfp 865DH-4R delivers. Turn out thermal encapsulation with low melt films (1.5-10mil), PSA lamination, and mounting jobs quickly and easily.

Spend less time on set-ups and changeovers with swing-out Quick-Grip supply shafts. Two front rewind shafts allow thermal encapsulation of prints from a roll.

Features:

  • Labor saving swing-out supply shafts
  • Drop-in Quick-Grip rewind shafts
  • Photoelectric eye for operator safety
  • Independent top and bottom heaters
  • Web clutch adjustment for output quality
  • Motorized rear rewind
  • Swing up feed table and 38" output height

Applications:

  • Signs
  • Posters
  • POP Displays
  • Trade show displays
  • Dry-erase boards
  • Graphic mounting
  • Photo mounting
  • Floor graphics
  • Window graphics
  • Vehicle graphics

Specifications:

  • Laminating Width: 65”
  • Roller Diameter: 5"
  • Roller Gap: 1”
  • Main rollers: Silicone
  • Supply roll diameter(max): 16" bottom, 8" top
  • Film shafts: 3" aluminum Quick-Grip
  • Rear rewind: Included
  • Max. temperature: 266°F
  • Heat method: Quartz heater
  • Film thickness: 1.5 - 10mil
  • Laminating speed: 0-13 ft/min
  • Drive motor: DC geared motor
  • Pressure Adjustment: Dual hand wheels
  • Roller heating: Top & Bottom
  • Power Supply: 240v 60HZ Single phase 24A
  • Power Consumption: Max. 5760W
  • Net Weight w/ stand: 767 lbs.
  • Dimensions: 87” x 34” x 49”
  • Machine shipping: 893 lbs. 90 x 38” x 33”
  • Stand shipping: 134 lbs. 79 x 33” x 15”
