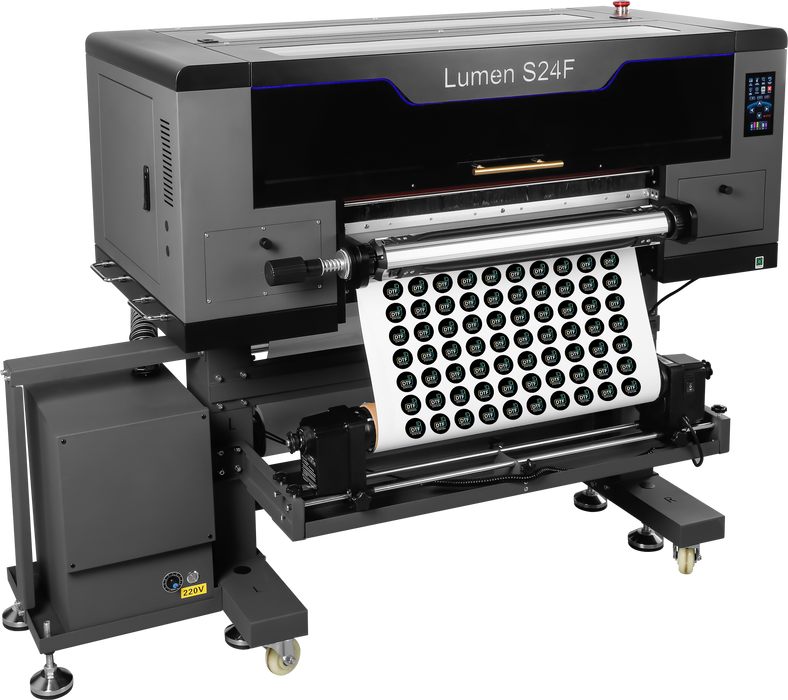

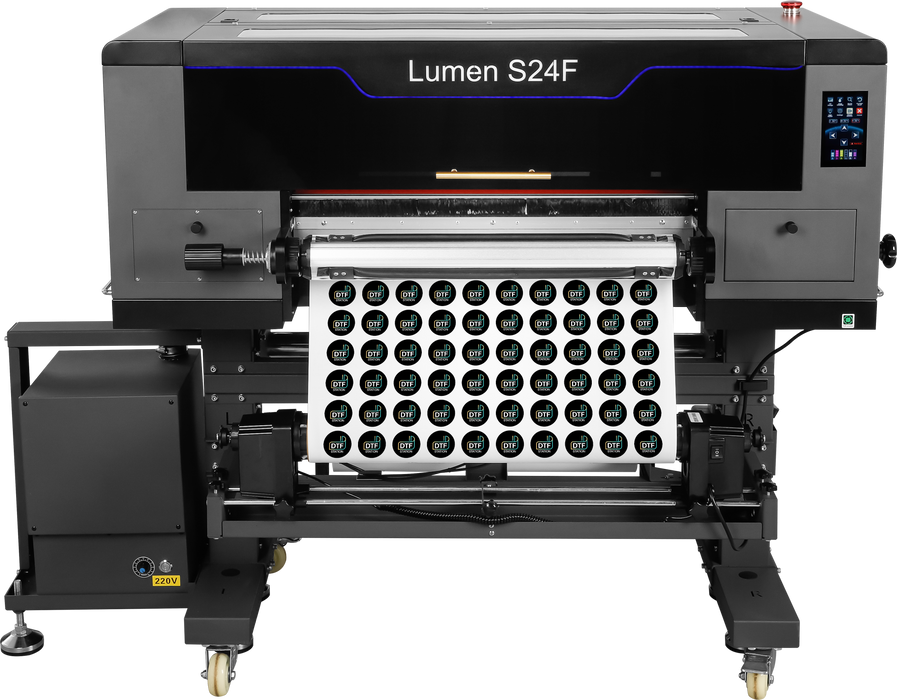

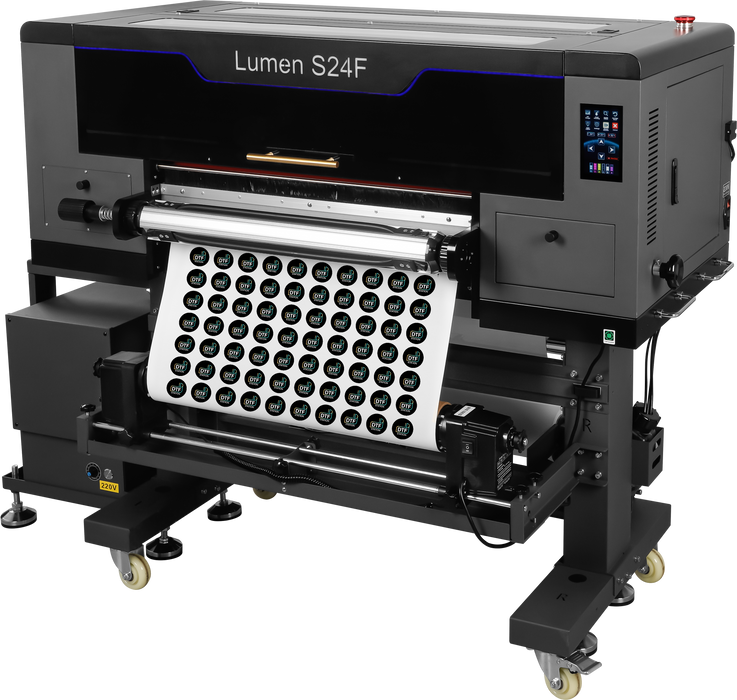

The Lumen S24F is a 24" 3D Embossed UV DTF Printer designed to turn flat artwork into dimensional UV DTF prints through an AI-assisted production workflow. With dual Epson printheads, automated white ink circulation and cleaning, integrated fume extraction, and 2-in-1 printing and laminating, the Lumen S24F provides a complete workflow for producing textured, dimensional UV DTF applications.
Key Features
- AI-assisted 3D layering for dimensional UV DTF designs
- Dual Epson printheads: i1600-U1HD + i3200-U1HD
- CMYK + White + Varnish ink configuration
- Automated white ink circulation and auto-cleaning
- Built-in fume extractor with integrated filtration
- 2-in-1 print and laminate workflow
- Single integrated touchscreen
- Compact commercial footprint
- Production-ready UV DTF printing
- neoStampa RIP and Image Presto included
Compatibility & Requirements
- Max. Print Width: 24" / 60 cm
- RIP Compatibility: neoStampa, DTF Station Pilot
- Connectivity: Ethernet, USB; Wi-Fi available
- Ink Configuration: CMYK + White + Varnish
Specifications
- Printheads: Epson i1600-U1HD + Epson i3200-U1HD
- Print Speed: 5.4 sq. ft./h / 0.5 m²/h
- Max. Print Width: 24" / 60 cm
- Ink Configuration: CMYK + W + Varnish
- Connectivity: Ethernet, USB; Wi-Fi available
- User Interface: Single integrated touchscreen
- RIP Compatibility: neoStampa, DTF Station Pilot
- Dimensions (W × D × H): 61.7" × 35.6" × 46.4"
- Weight: 368 lb / 167 kg
- Power Supply: 110V / 220V
- Rated Current: 9A / 4.5A
- Power Consumption: 1,000W
What's Included
Standalone
- Lumen S24F 3D Embossed UV DTF Printer
Lumen S24F Printer + Software + On-site Training
- Lumen S24F 3D Embossed UV DTF Printer
- Software
- On-site Training
Lumen S24F Printer + Supplies + Software + On-site Training
- Lumen S24F 3D Embossed UV DTF Printer
- 3D Embossed UV Ink — Cyan, 1kg
- 3D Embossed UV Ink — Magenta, 1kg
- 3D Embossed UV Ink — Yellow, 1kg
- 3D Embossed UV Ink — Black, 1kg
- 3D Embossed UV Ink — White, 1kg
- 3D Embossed UV Ink — Varnish, 1kg
- 3D Embossed UV Film — 24" × 27.3yd Roll
- Software
- On-site Training
Warranty & Support
- Technical Support: Lifetime DTF Station technical support
- Warranty: 1-year limited warranty on non-consumable parts
- Included Software: neoStampa RIP and Image Presto
