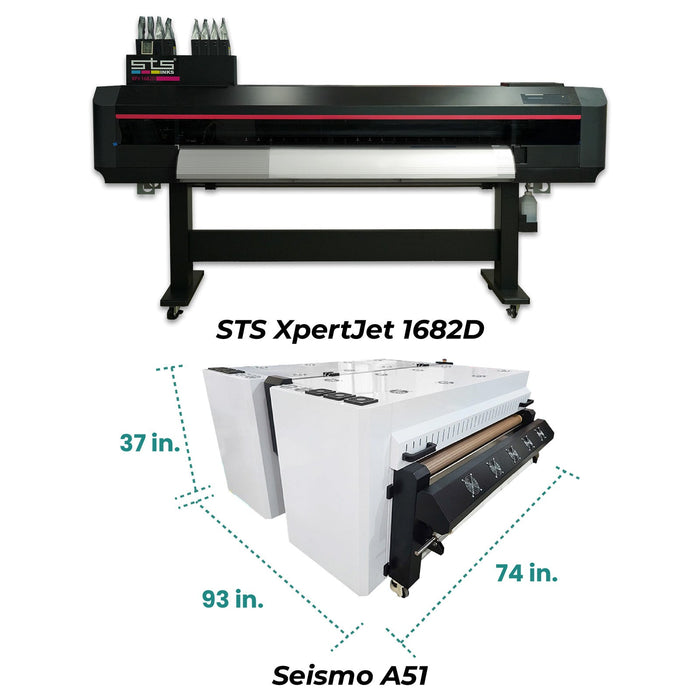

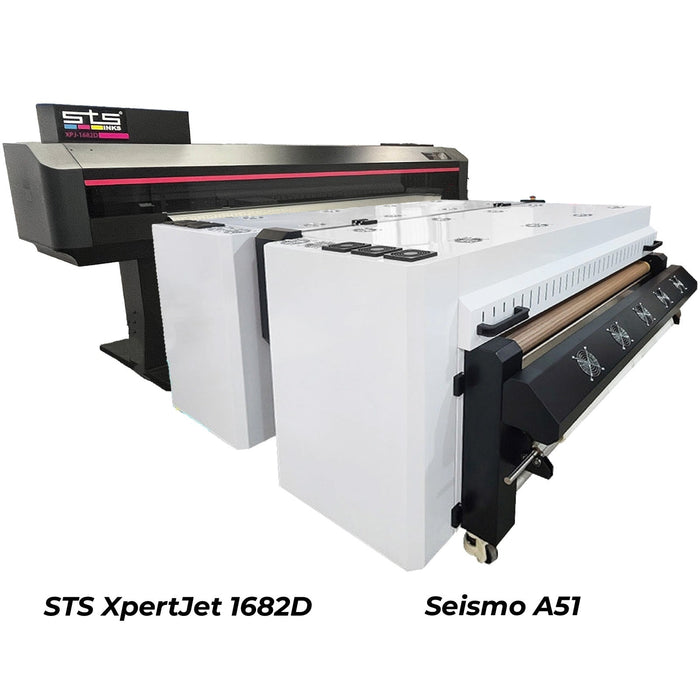

STS XpertJet 1682D DTF Printer & Seismo A51 DTF Powder Shaker Bundle

by STS Ink
Sold out
Original price $39,434.00
Current price $36,650.00

Find out how you can get 0% Financing for 1 year on this combo here!


Total Bundle Value: $39,434
Total Savings:  $2,784
YOUR COST:    $36,650

STS 1682D DTF Printer Spec Sheet

The STS XPJ 1682D 64” DTF Printer has a staggered dual-head design that provides ultra-fast print speeds. It produces smooth gradations while delivering high-quality printing even with reduced resolution. It has SAI’s Flexi DTF Pro Edition RIP Software, bundled with Flexi DTF Pro Editor. The XPJ-1682D also features automatic bi-directional alignments, a user-friendly touch panel, added LED lighting, and an upgraded media feed flange that allows operators to easily and quickly load media and exchange multiple rolls. These features are designed to increase user friendly operation and maintenance while continuing to offer high production, high-quality output. The XPJ-1682D is paired with STS’s DTF ink, which offers users excellent color gamut and outstanding durability.

Printer Package includes:

Description Quantity
STS 1682D Direct to Film Printer 1
STS/MUT Direct to Film 220ml Cart.- Cleaning Solution 10
Cold Peel Inkjet Film - Single Sided Matte Roll - 24" x 328' 1
Direct to Film 500ml Cartridge - Cyan 1
Direct to Film 500ml Cartridge - Magenta 1
Direct to Film 500ml Cartridge - Yellow 2
Direct to Film 500ml Cartridge - Black 2
Direct to Film 500ml Cartridge - White 4
Flexi STS DTF Edition 1
DTF-P-1 TPU Powder - Low Temp 225 F - 2 kg Bag 1
Power Cable 2
LAN Cable 1


  • STS DTF Inks (CMYK Lm Lc White x8)
  • Built-in color sensor for auto bi-directional.
  • Improved feed mechanism corresponding to a wide range of media.
  • Status Monitor (MSM) checks printer status in real time.
  • Media flange allows for easy media loading.
  • White ink circulation
  • Nozzle area selection
  • Drop Master 2 Technology


  • Printing systems: Drop-on-demand Micro Piezo Inkjet Technology
  • Print head height: Three level adjustment: Low 1.5mm, Mid. 2.5mm, High 4.0mm
  • Print head: 2 (staggered set-up)
  • Max print resolution: 1440x1440dpi
  • Print modes: 1440/1080/720/360dpi
  • Media width: 64”
  • Media capacity: ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less
  • Max media thickness: Low 0.3mm, Mid. 1.3mm, High 2.8mm
  • Max printable width: 63.6 in
  • Height adjustment: Automatic
  • RIP software: Flexi21 DTF Pro Edition
  • Ink Type: DTF Water Based
  • Ink Set: CMYK Lm Lc White x8
  • Ink Volume: 1000mL CMYK Lm Lc / 900mL White
  • No. of slots: 8
  • Interface: Gigabit-Ethernet (1000BASE-T )
  • Power Requirements: AC 100-120V± 10%, 50/60Hz ± 1Hz
  • Printable Environment: Temperature: 68-89.6°F | Humidity: 40-50% RH
    (non condensing) Rec. environment: Temperature: 71.6-86°F
  • Power Consumption: Main: Operation status 77W or less | Standby: 52W or less
  • Dimensions (LxWxH): 80 x 45 x 48
  • Weight: Body: 321.87lb | Stand: 70.54lb


Seismo Shaker and Dryer Maintenance Chart

The Seismo A51 DTF Powder Applicator and Dryer unit can cure DTF rolls up to 51 inches wide and is compatible with all roll to roll Direct to Film printers. It has 220 volts, 28 amps, and hardwire (Please communicate with your electrician to install this)


  • Dual Length Heater: Longer heater/ dryer than the other DTF powder applicator and dryer combo to accommodate Faster DTF roll to roll printers.
  • Advanced Built-in HEPA 2 Layer Dual Air Filters filter out any fumes from DTF powder. low maintenance, easy to replace filters, and keep the environment clean and safe.
  • Advanced Film Detector: With the effective film sensor, it automatics turns off and on the power station, and heating elements which results in a lower power requirement of 220v 28 Amp
  • Advanced powder ventilation within the powder station: heating fans help reduce any powder build-up in the powdering station, less maintenance
  • Air vacuum conveyor system: there’s an air vacuum on the front and end of the conveyor to keep the films from slipping/ moving, it aligns the DTF films to get even heating throughout the heater/dryer.
  • Advanced Take-Up System: Additional tension bar to roll up the finished DTF films better and compact as needed
  • LCD Touch Screen: Easy to monitor and control

Warranty: 1 yr warranty on all parts excluding air filter/ purification system (regular maintenance required)

Actual Dimension:  87.59" x 69.29" x 42.51" Please note that this is different from Specs


Power 6KW
Shaking Powder Motor vibration, automatic powder return-free
Heating Method

Double Ovens Back baking and front baking Fast constant temperature heating

Take-up and Feed Film Auto-sensing
Operation Mode Manual/Auto control
Mesh Belt Drum suction operation mesh belt
Automatic Deceleration of Film Cutting Prevent deformation of heating film
Method of Dusting Constant weight automatic sensing

881.849 lbs

Machine Size
93" x 74" x 37"
Packing Size 98" x 78.5" x 40.25"
Configuration With double All-in-one smoke purifier
