Professional 24" DTF Printing for High-Volume Production

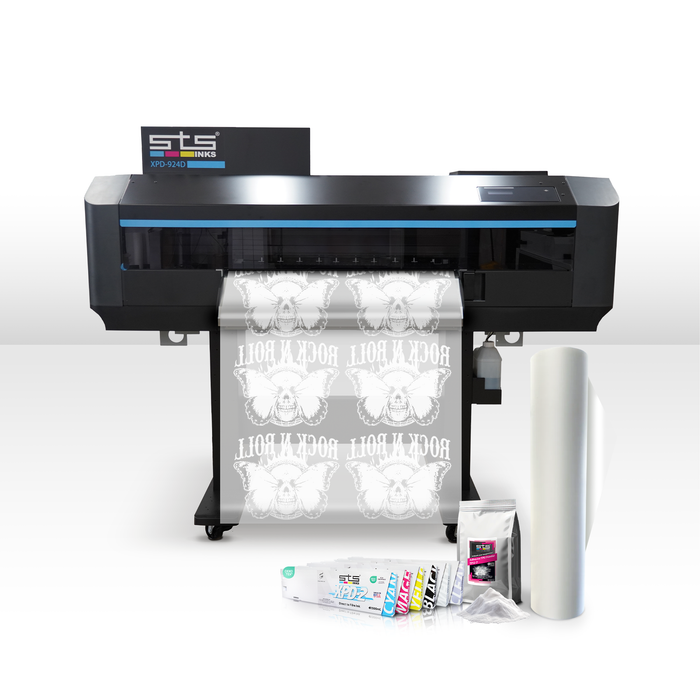

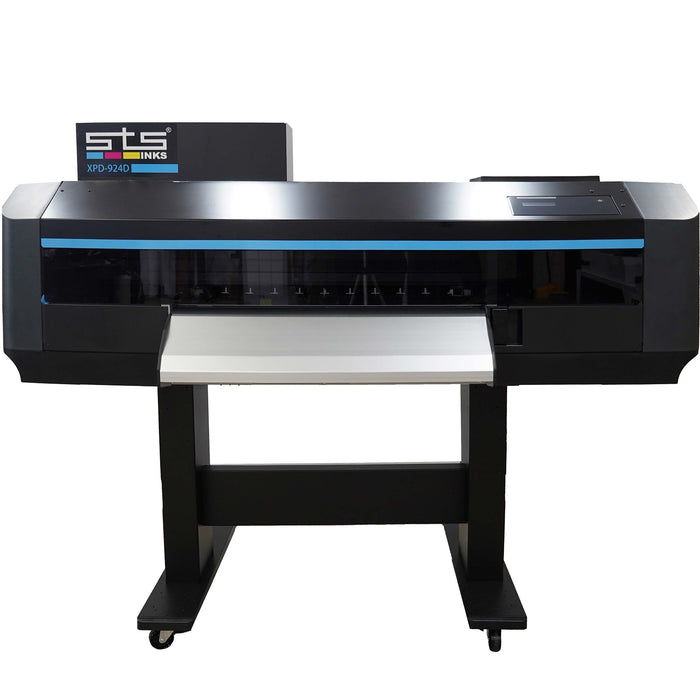

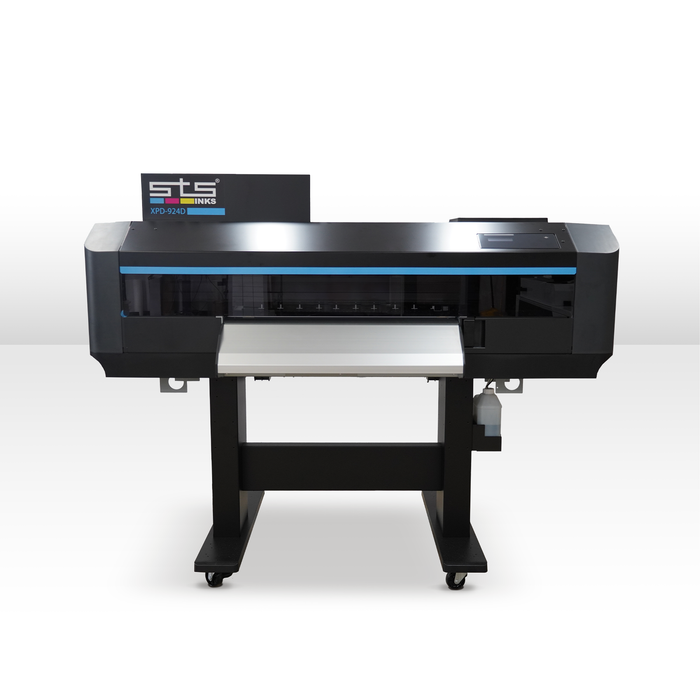

The STS Inks XPD-924D is a professional 24" Direct-to-Film printer built for stable, high-volume production. With a heavy-duty aluminum rail system, two staggered printheads, automatic alignment features, white ink circulation, and automated cleaning and maintenance, the XPD-924D is designed to deliver consistent DTF transfers while keeping production moving.
Its 24.5" maximum printable width provides room for larger designs and production runs, while the built-in media tracking and feeding systems simplify everyday operation. The XPD-924D also includes the Mutoh Status Monitor software for print history, job cost analysis, and remote access.
Features
- High-Precision Aluminum Rail System: Provides stable, accurate printing for consistent output.
- AccuFine HD Printheads: Two staggered printheads provide fast printing with high-quality results.
- Automatic Alignment: Built-in sensors support automatic bi-directional and page-feed alignment.
- Feed Master: Automatic feed roller adjustment helps simplify media handling.
- DropMaster 2: Automatic bi-directional alignment system.
- i-screen Print Effects: Multiple waveforms help mitigate banding.
- Media Tracker: Tracks remaining media on the roll.
- White Ink Circulation: Helps maintain consistent white ink flow.
- Auto Cleaning & Maintenance: Automated maintenance helps reduce manual intervention.
- Improved Front Dryer System: Designed for 20% faster ink drying times.
- Internal LED Lighting: Provides visibility during printing.
- Easy Media Loading: Updated media angles and feeding mechanisms simplify loading and page feeding.
- Mutoh Status Monitor: Records print history, provides job cost analysis, and supports remote access.
- Side-Mounted Connections: Conveniently positioned LAN and power connections with an LED operation panel.
Benefits
- High-volume production: Print at speeds up to 188 sq ft/hr for demanding production workflows.
- Consistent output: Precision hardware and automatic alignment systems help maintain reliable print quality.
- Flexible production: Supports multiple print modes so you can prioritize output speed or image quality depending on the job.
- Reduced maintenance: White ink circulation and automated cleaning help keep production running.
- Efficient media handling: Automatic feeding and media tracking simplify everyday operation.
- Professional DTF transfers: Produces soft, colorful transfers with flexibility, elasticity, and washability.
Printing Modes & Speeds
XPD-924D offers four printing modes for different production and quality requirements:
- High Speed: 900 × 600 dpi, 3-pass — up to 188 sq ft/hr
- Production: 600 × 1200 dpi, 4-pass — up to 145 sq ft/hr
- Enhanced Quality: 900 × 1200 dpi, 6-pass — up to 96 sq ft/hr
- High Quality: 1200 × 1200 dpi, 8-pass — up to 72 sq ft/hr
Note: The 3-pass 188 sq ft/hr mode is intended for high-output production rather than maximum image quality. For jobs where image quality is the priority, the higher-pass modes provide increased resolution and detail. The 4-pass mode delivers up to 145 sq ft/hr, while the 6-pass and 8-pass modes provide progressively higher print quality.
Specifications
- Printing Method: Drop-on-demand Micro Piezo Inkjet Technology
- Printheads: 2, staggered
- Printhead Height: 1.5 mm, 2.0 mm, 2.5 mm, 4.0 mm
- Maximum Print Resolution: 1200 × 1200 dpi
- Media Width: 25"
- Maximum Printable Width: 24.5"
- Media Capacity: 5.9" diameter / 2" & 3" cores; roll media up to 66 lbs
- Maximum Media Thickness: Low 1: 0.3 mm; Low 2: 0.8 mm; Mid: 1.3 mm; High: 2.8 mm
- Maximum Print Speed: 17.5 m²/hr / 188 sq ft/hr
- RIP Software: Inèdit™ neoStampa / CADlink™ Digital Factory 12
- Interface: Gigabit Ethernet (1000BASE-T)
- Power Requirements: AC 100–220V ±10%, 50/60Hz ±1Hz
- Printing Environment: 68–77°F / 20–26°C; 40–55% humidity
- Power Consumption: 70W or less during operation; 30W or less in standby
- Dimensions: 70.68" × 35.23" × 56.48" (W × D × H), cover closed
- Printer Weight: 310 lbs body + 70.54 lbs stand
- Ink Type: DTF
- Ink Set: 4-color CMYK + White
- Ink Volume: 500 mL DTF ink cartridges
- Number of Slots: 6
Compatible With
- Inèdit™ neoStampa
- CADlink™ Digital Factory 12
- DTF printing workflows using CMYK + White DTF inks
