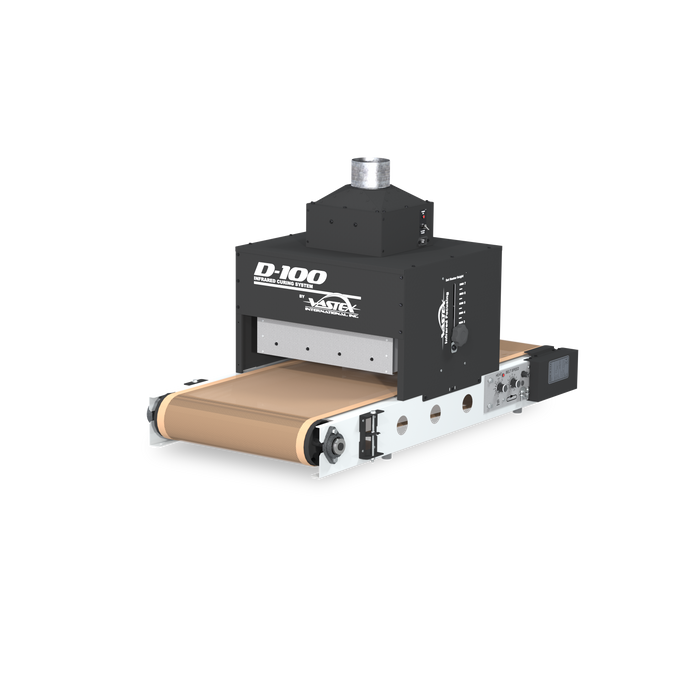

Vastex D100 Entry Level Infrared Dryers 18" Belt x 4' Long

by Vastex
$2,350.00
SKU VT-D-100
** Only ships to continental U.S. **

** Lead Time: 1 Week **



The D-100 entry-level tabletop conveyor dryer comes with a Hi/Lo heat adjustment and variable belt speed. This provides you with full control over your curing environment.

This dryer is compact yet powerful due to the dense coil pattern and heater shields which eliminates hot and cold spots. This conveyor dryer is ideal for any home-based or small business looking for an economical dryer with a small footprint.

Vastex D100 Entry level Infrared Dryers 18 belt x 4 long Guide

Vastex D100 Entry level Infrared Dryers 18 belt x 4 long Instruction

Electric: 120V, 1625 Watts, 12.5 Amps (NEMA 5-15P)

Production: 110+ Shirts/Hour* (Plastisol)50+ Shirts/Hour* (Waterbased/Discharge)

Belt Dimensions: 46" x 18" (L x W)

Overall Dimensions: 46" x 24" x 24" (L x W x H)

Chamber Length: 18"

Chamber In-Feed Height: 2" - 7" (adjustable)

Heater Dimensions: 16" x 16"

  • 18" Synthetic coated fiberglass belt with tracking system
  • Infrared Focusing System: 2" - 7" belt-to-heater clearance, adjustable separately on each side for each heater
  • DC belt speed control
  • 3 Year Defect Warranty
  • 15 Year Heater Warranty
  • Unit will ship un-assembley
  • Assembly charge for D-100 and D-1000: $132
  • Shipping charge will be charged separately.
Description D-100
Heater Warranty 15 Year
Defect Warranty 3 Year
Shirts / Hr Plastisol 110+@ 25 secs.
Shirts/hr wb/discharge 50+@ 70 secs.
Belt Speed 0.6-7.4 FPM
(0.18-2.3 MPM)
Exhaust (Free Air) n/a
Exhaust Diameter n/a
Overall Length 46" (117 cm)
Overall Width 24" (61 cm)
Overall Height 24" (61 cm)
Belt Width 18" (45.7 cm)
Chamber Length 18" (45.7 cm)
Chamber Infeed Width 19.5" (49.5 cm)
Chamber Infeed Height(adjustable) 2" - 7"
(5 - 17.7 cm)
Heat Range (@ Heater) 0-750 F ° (0-399 C °) @ 120 or 240V
Heater Size 16"x16"(40.6x40.6 cm)
Total Wattage 1,625 Watts
Cost/hr to operate based on 10 cents/ kwh 16 cents
Electrical Specs**
Chamber
120V / 12.5A / NEMA 5-15P
240V / 6.5A / 1 Ph. / NEMA 6-15P
Electrical Connection Cordset Included
Optional Power 208V
Unit Weight 89 lbs (41 kg)
Shipping Weight** Box 1 - 57 lbs (26 kg)
Box 2 - 16 lbs (7.3 kg)
Box 3 - 21 lbs (9.6 kg) Boxes on skid - 115 lbs (52 kg)
Shipping Dimensions** Box #1 -
51.5x25x8" (131x64x20
cm) Box #2 -
21x21x7" (53x53x18 cm)
Box #3 -
25x18x6" (64x46x15 cm)
On Skid -
52x26x22" (132x96x51cm)

------------------------------------------------

Vastex Exhaust Option for D-100 and D-1000 Conveyor Dryer

Features:

  • Works with any new or existing D-100 or D-1000 dryer.
  • Removes fumes and moisture from inside chamber.
  • Helps exhaust hot air out of the room for those using the dryer in confined areas.
  • Assists in removing fumes from DTF (Direct to Film) adhesives.

-------------------------------------------------------------------------------------

Vastex D-100 Lid for Exhaust Option

D-100 Cover/Lid (Includes 4" hole for exhaust)

Compatible With:
